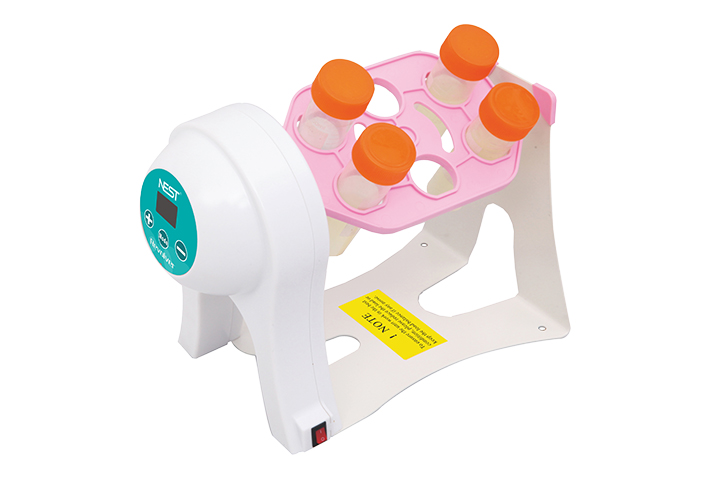

TUBE REVOLVER VARIABLE SPEED WITH DIGITAL DISPLAY

• GE5586-01

The tube revolver can be used in a variety of laboratory fields such as Molecular Biology, Biochemistry, Clinical, and Histochemistry. The rotisseries are interchangeable so that the unit works with a variety of tube sizes. The four rotisserie paddles can be mixed for a combination of different tubes. Each paddle direction can be independently adjusted from 0-90 degrees.

In addition to the speed adjustability and digital display, Model HYQ-1131 can be programmed to operate in a back and forth oscillating mode, simulating the mixing process by hand. Oscillation occurs at every 40 degrees
in the rotation. The combination of rotation and oscillation mixes liquid more effectively.

Small footprint, “Plug and Play” operation;
Includes five different interchangeable rotisseries;
Rotation direction can be changed by slightly touching the rotisseries;
Paddle angle is adjustable for different mixing purposes;
High quality, maintenance-free motor with quiet operation.

Specifications
Product Name NEST Variable Speed Tube Revolver with Digital Display
Cat. No. 105004
Rotation Speed 10~40rpm
Capacity 84x0.5ml tubes, 60x1.5ml/2.0ml tubes, 28x5ml/7ml tubes,24x10ml tubes, 6x50ml tubes
Holder for Tubes
Standard Configuration
Rotisserie Paddles for 10ml/15ml Tubes 2pcs
Rotisserie Paddles for 5ml/7ml Tubes 2pcs
Rotisserie Paddles for 1.5ml/2ml Tubes 2pcs
Rotisserie Paddles for 0.5ml/0.8ml Tubes 2pcs
Rotisserie Paddles for 50ml Tubes 1pcs
Ambient 4~60℃
Outside Dimensions 260(W)x148(D)x195mm(H)
Power 10W
Power Supply AC100V~240V 50Hz/60Hz
Weight 1kg
