POWER SUPPLY VAR HIGH VOLT 0-300V.DC/50mA METER 2 x 6.3V
- LB2611-001

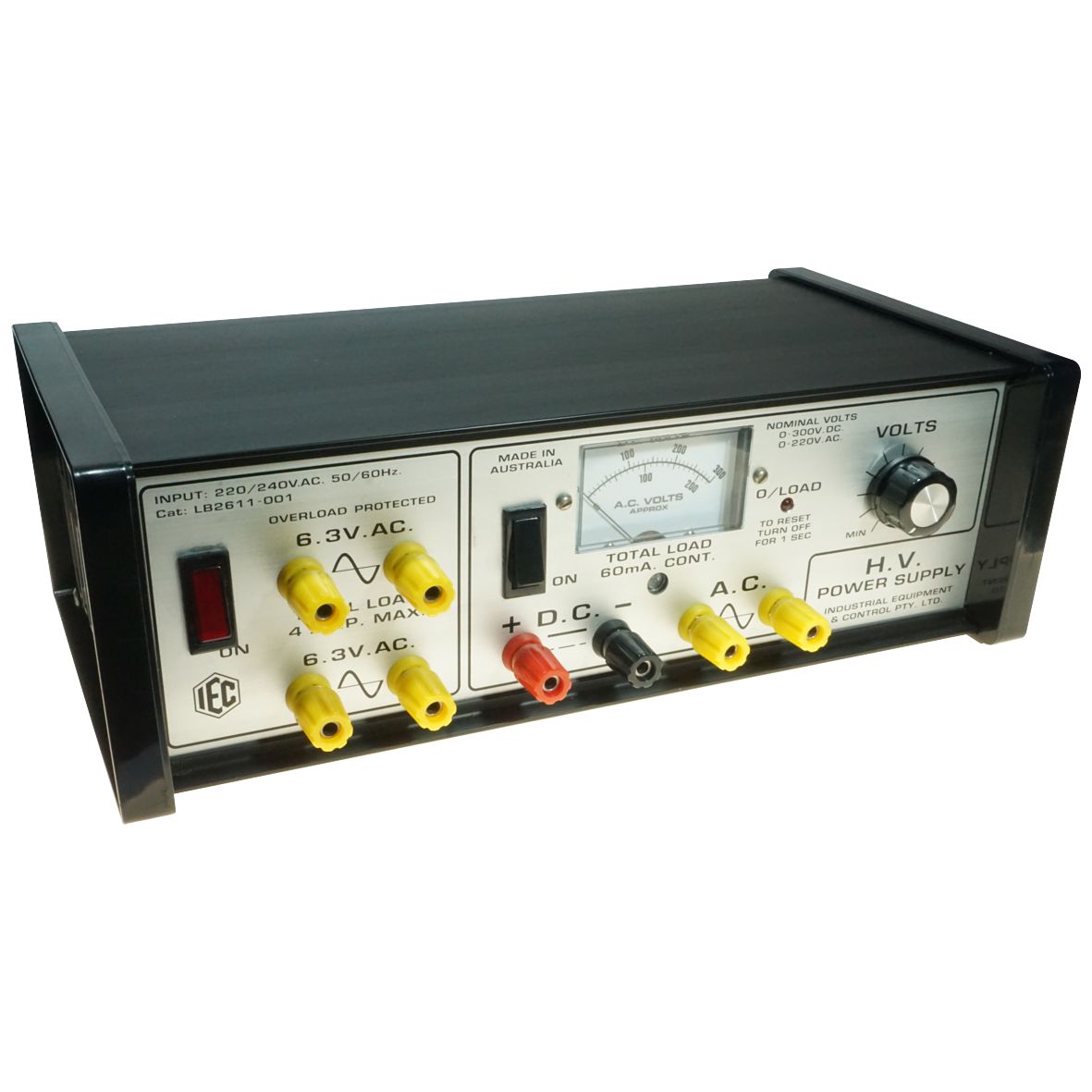

The IEC High Voltage Power Supply (2x 6.3V.AC @ 4amps, 0-200V..AC / 0-300V.DC @50mA) is a general purpose power supply that can supply high voltage up to 50mA. The overload trip is electronic and is reset by turning off the high voltage output.
The low voltage is provided as 2x 6.3V.AC. 4A outputs which are normally used for running heaters of electron tubes.
see also LB2612+I41-001 for 500V.DC. unit
