POWER SUPPLY SW GEN. PURPOSE 2-12V.AC/DC 10AMP

  • LB2631-001

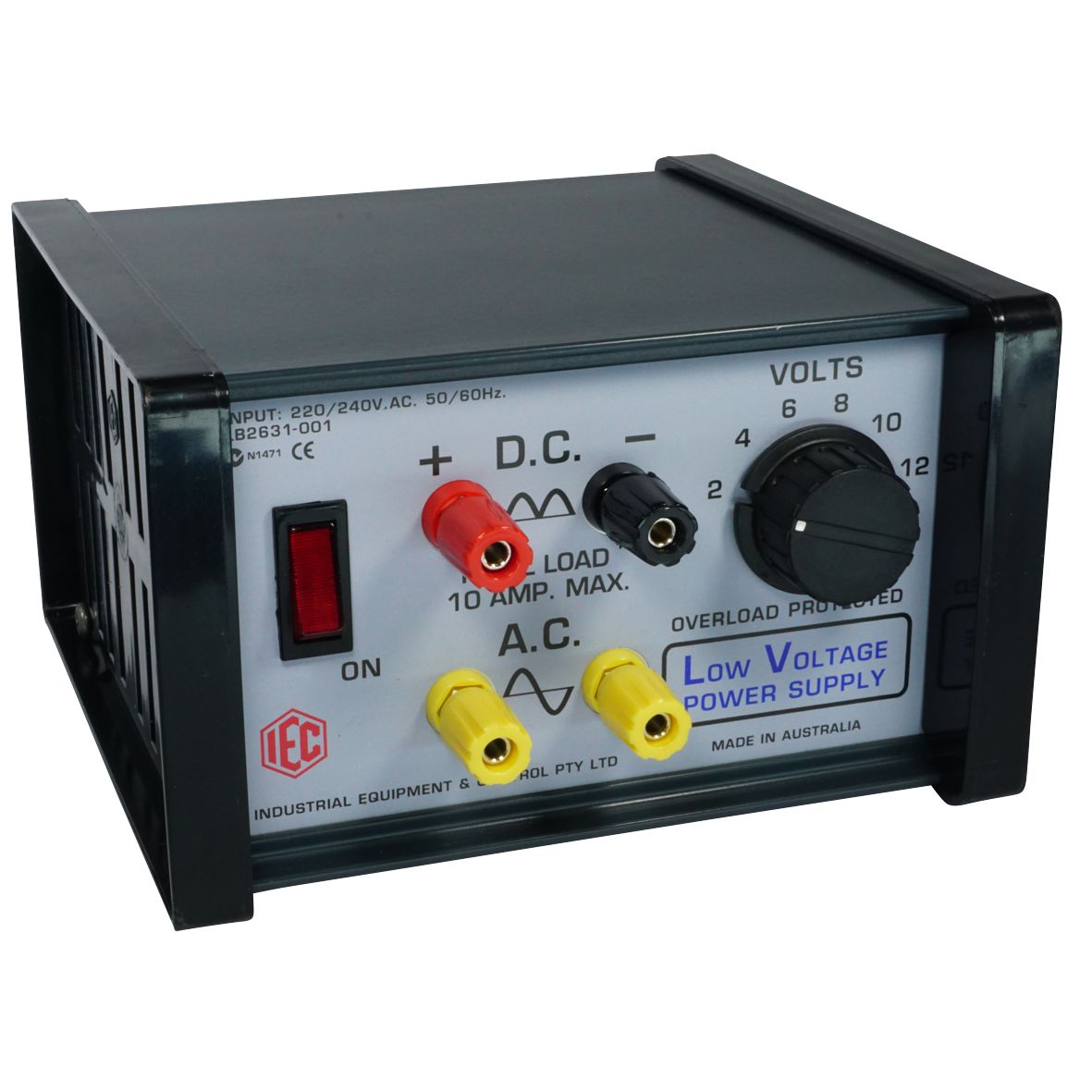

This IEC Power Supply is a compact, general purpose power supply to provide switched AC and DC voltages at 2, 4, 6, 8, 10 and 12V.AC and DC at about 8 to 10A. The DC output is full wave rectified but not filtered. It is almost the same unit as the famous 'workhorse' LB2633-001 power supply, but provides a larger output current.
The illuminated mains switch is on the front panel and overload protection is by an automatically resetting overload that provides an audible 'click' when tripped and reset. The housing is a little larger than the LB2633-001 unit.

Instruction Sheet
