MICROWAVE EXPERIMENT KIT

EM1405-01
NEW PRODUCT !

Digital Microwave Experimental Instrument
Purpose: Use the emission and reception state of microwaves to illustrate some basic optical characteristics. It can form a complete experimental system by itself. Some sensors can also be added to conduct digital experiments.

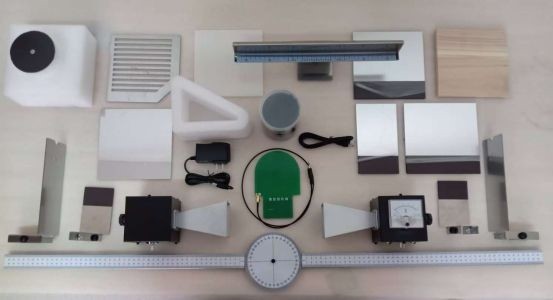

Instrument specifications:
1. Microwave transmitter: frequency 10.525Hz.
2. Microwave receiver: can rotate 360 degrees to change the receiving angle.
3. Microwave receiver: sheet, gold joint.
4. Experimental guide rail: two-section, can rotate to change the angle.
5. High bracket: two, can be moved and fixed along the guide rail.
6. Low bracket: two, can be moved and fixed along the guide rail.
7. Disc center bracket: can be adsorbed on the disc and adjust the angle as needed.
8. Stainless steel reflector: 1 piece, can be magnetically attracted.
9. Stainless steel polarizer: 1 piece, can be magnetically attracted.
10. Microwave absorption plate: one piece of acrylic and one piece of wood.
11. Interference experiment horizontal support rod: one stainless steel with scale.
12. Interference experiment wave blocking baffle: two large and one small reflective lenses.
13. Pearl cotton container box: the triangles are 30 degrees, 60 degrees, and 90 degrees respectively.
14. Pearl cotton rotating table: can be adsorbed on the disc in the center of the guide rail.
15. A bottle of plastic particles. A double-headed headphone plug wire.
