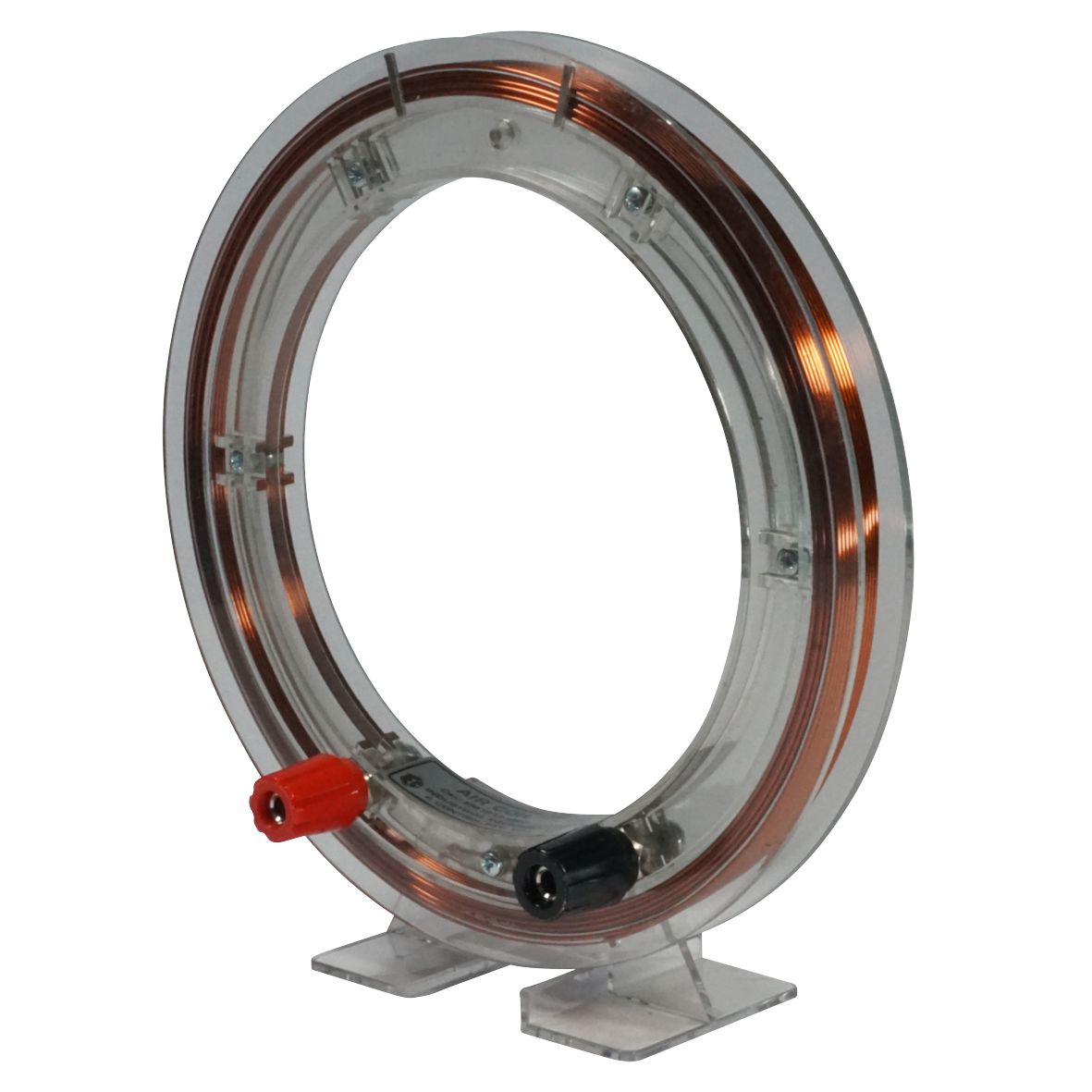

COIL LARGE AIR WOUND 150mmD 50T x 2A WITH FOOT
This large general purpose air cored coil is similar to a Helmholtz coil but the number of turns is 50 and the wire is thicker to carry a larger current of about 2A. It can lie flat or can stand edgeways from the table. It is complete with 4mm spin free IEC terminals.
Average diameter of the coil is 150mm and coil resistance is about 0.7ohm. To keep the current at 2A, the maximum voltage permitted is about 1.4V AC or DC.. Higher currents can be used for short periods.
