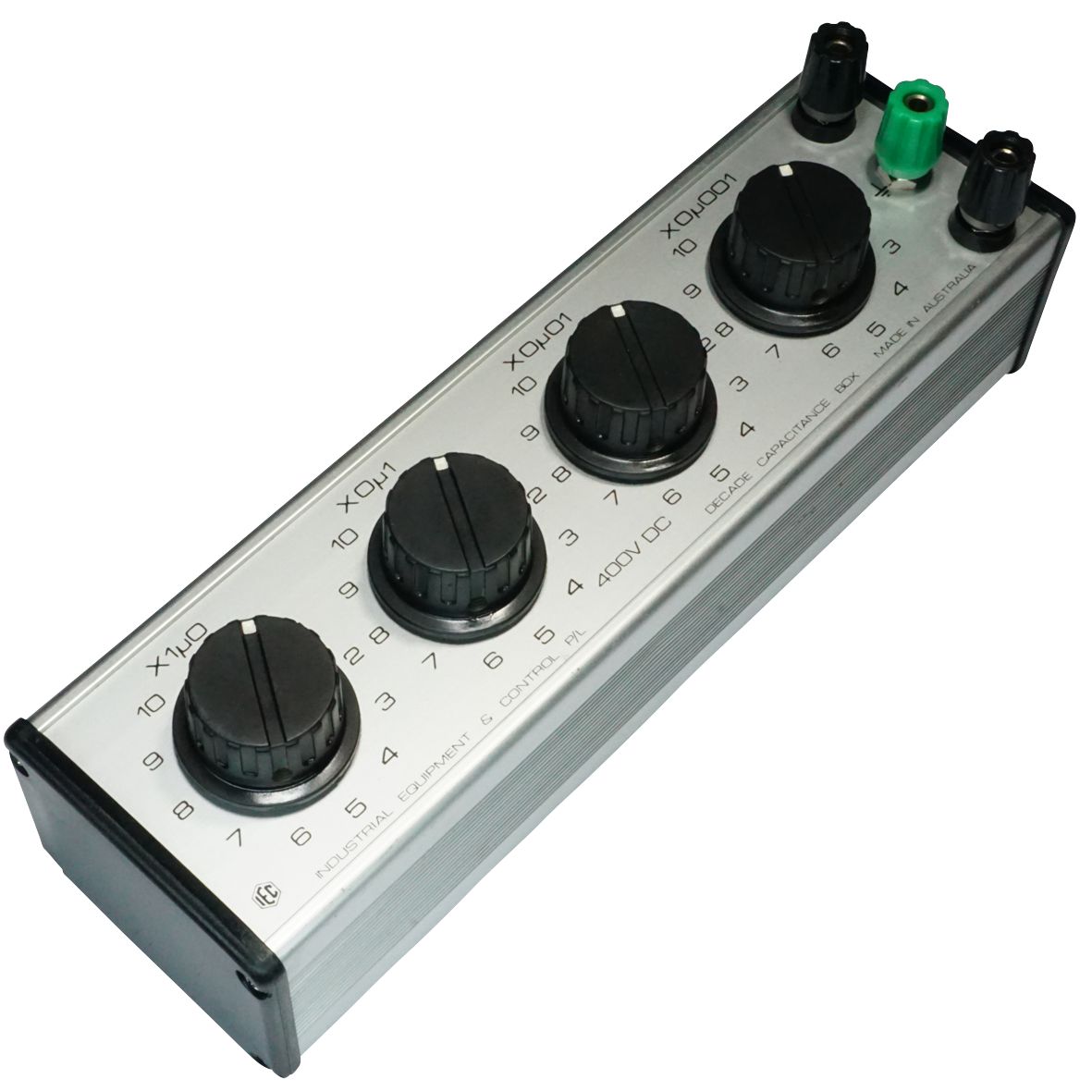

CAPACITOR BOX 4 DIAL 11.11µF x 0.001µF 400V.DC

  • EM0932-001

The IEC Capacitor boxes are traditional instruments that permit the selection of capacitors in decades (each dial has 10 steps).

Accuracy is typically +/- 5%.

This 4 dial model provides total of 11.11µF in steps of 0.001µF.

Maximum voltage: 400V

Dial 1: 0.001 to 0.01µF, Dial 2: 0.01 to 0.1µF, Dial 3: 0.1 to 1.0µF, Dial 4: 1.0 to 10µF

Connection by 4mm spin free terminals with extra terminal for earthing the housing if required.

Instruction Sheet
