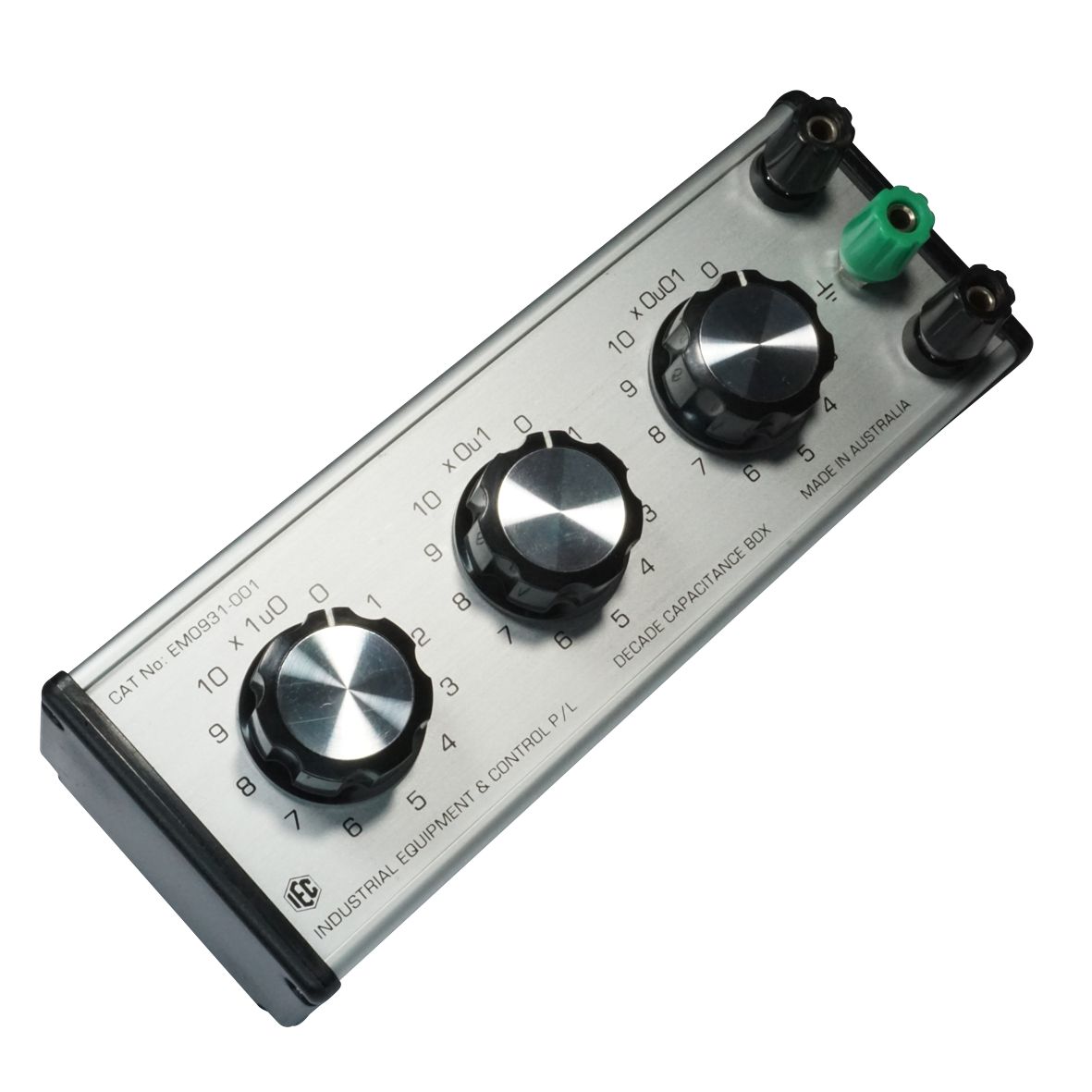

CAPACITOR BOX 3 DIAL 11.1µF x 0.01µF 400V.DC

  • EM0931-001

The IEC Capacitor boxes are traditional instruments that permit the selection of capacitors in decades (each dial has 10 steps).

Accuracy is typically +/- 5%.

This 3 dial model provides total of 11.1µF in steps of 0.01µF.

Maximum voltage: 400V

Dial 1: 0.01 to 0.1µF, Dial 2: 0.1 to 1.0µF, Dial 3: 1.0 to 10.0µF

Connection by 4mm spin free terminals with extra terminal for earthing the housing if required.

Instruction Sheet
