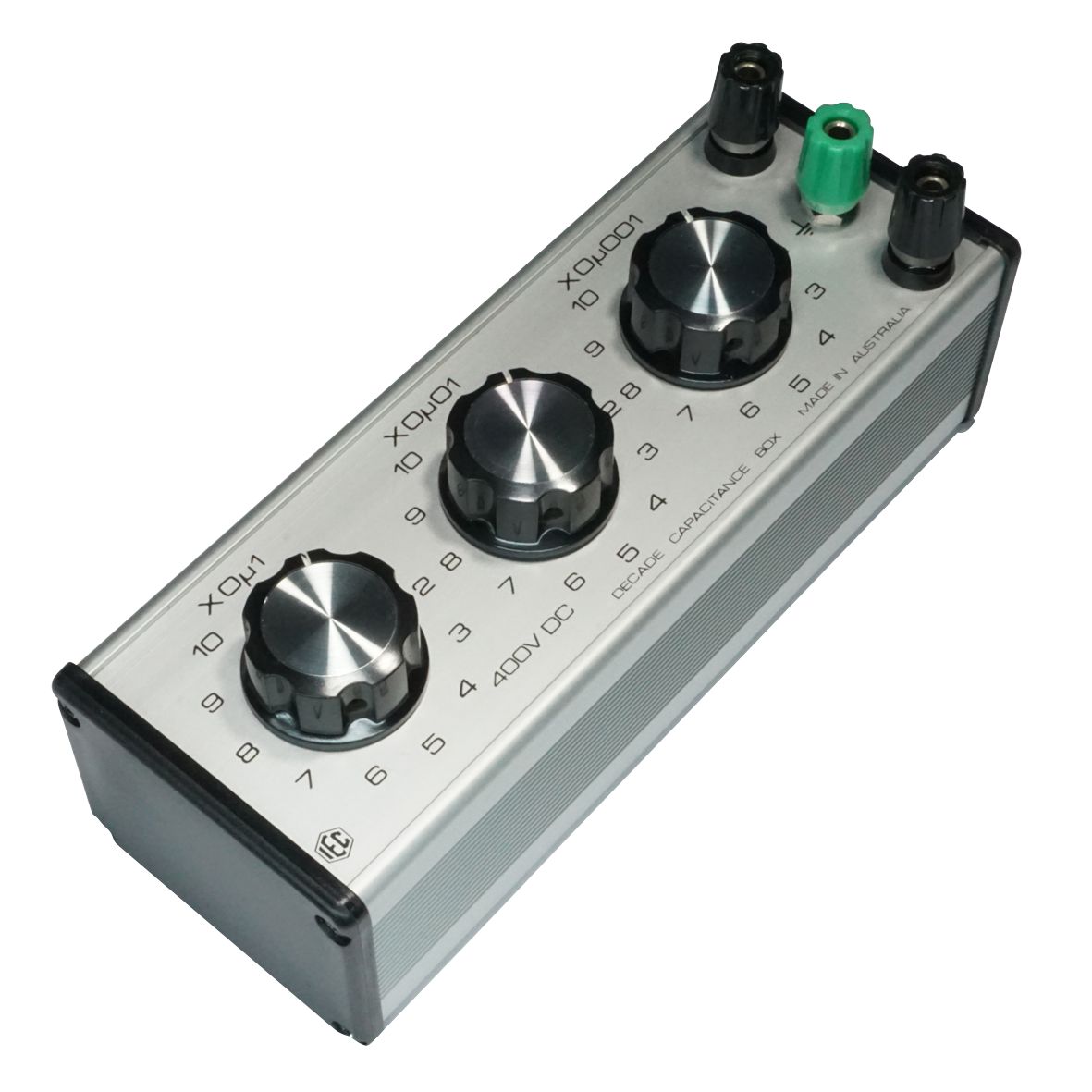

CAPACITOR BOX 3 DIAL 1.11µF x 0.001µF 400V.DC
- EM0930-001
The IEC Capacitor boxes are traditional instruments that permit the selection of capacitors in decades (each dial has 10 steps).
Accuracy is typically +/- 5%.
This 3 dial model provides total of 1.11µF in steps of 0.001µF.
Maximum voltage: 400V
Dial 1: 0.001 to 0.01µF, Dial 2: 0.01 to 0.1µF, Dial 3: 0.1 to 1.0µF
Connection by 4mm spin free terminals with extra terminal for earthing the housing if required.
